Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY

ন্যূনতম চাহিদার পরিমাণ : 1 কিমি প্যাকেজিং বিবরণ : কাঠের ড্রাম
ডেলিভারি সময় : সাধারণত 5-7 দিন, এটি অর্ডার পরিমাণের উপর নির্ভর করে পরিশোধের শর্ত : এল/সি, টি/টি, ওয়েস্টার্ন ইউনিয়ন, আলিপে
যোগানের ক্ষমতা : প্রতি মাসে 4500KM
উৎপত্তি স্থল: চীন পরিচিতিমুলক নাম: Jiqian
সাক্ষ্যদান: ISO 9001/CE/FCC/ মডেল নম্বার: GYFTY

বিস্তারিত তথ্য

উৎপত্তি স্থল: গুয়াংজু, চীন পরিচিতিমুলক নাম: Jiqian
কন্ডাক্টরের সংখ্যা: ≥ 10 শক্তি সদস্য: এফআরপি
প্রস্তুতকারক: হ্যাঁ স্টোরেজ/অপারেটিং তাপমাত্রা:: -40 থেকে +70 ° C
আবেদন: DUCT/আন্ডারগ্রাউন্ড OEM: হ্যাঁ
কেবল টাইপ: ডাইইলেকট্রিক ফাইবার কেবল ফাইবার গণনা: 4-288 কোর
বিশেষভাবে তুলে ধরা:

underground fiber optic cable 144 core

,

aerial fiber optic cable GYFTY

,

48 core underground fiber cable

পণ্যের বর্ণনা

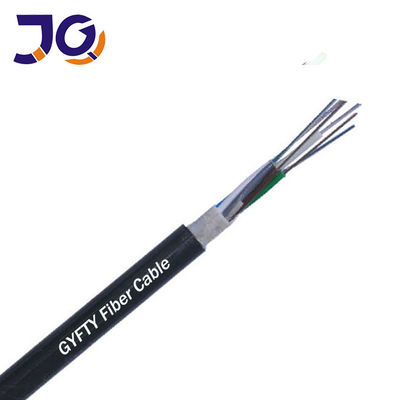

Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY

Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY 0

Features:

1.Adopt "SZ" bidirectional layer twisting technology
2.Water-blocking grease filling in each process, full-section water-blocking
3.Steel (aluminum) belts have reliable lap bonding, high strength, and will not crack when torsionally twisted
4.Stable fiber excess length control
5.After the cable is completed, the additional attenuation of the optical fiber is close to zero and the dispersion value does not change.
6.Excellent environmental performance, applicable temperature range is -10℃~+70℃
7.Suitable for overhead, pipeline, direct burial and other laying methods
Applicable laying method:
Underground, overhead

Technical Parameters:
Cable Count Out sheath
Diameter
Weight Minimum allowable Tensile Strength
(N)
minimum allowable Crush Load
(N/100mm)
Minimum Bending Radius
(MM)
Storage
temperature
(MM) (KG) short term long term short term long term short term long term (℃)
24 8.8 65 1500 600 1000 300 20D 10D -40+70
36 8.8 65 1500 600 1000 300 20D 10D -40+70
48 9.0 65 1500 600 1000 300 20D 10D -40+70
60 9.2 75 1500 600 1000 300 20D 10D -40+70
72 9.5 75 1500 600 1000 300 20D 10D -40+70
96 11.0 103 1500 600 1000 300 20D 10D -40+70
144 13.8 160 1500 600 1000 300 20D 10D -40+70
Performance characteristics:
No metal structure, excellent anti-electromagnetic and lightning performance, anti-static

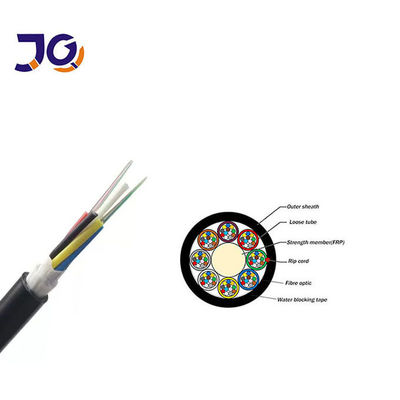

Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY 1

Fiber Properties

The properties of single mode optical fiber (ITU-T Rec. G.652D)

Item Specification
Fiber type Single mode
Fiber material Doped silica
Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm

≤ 0.35 dB/km
≤0.32 dB/km
≤0.21 dB/km
≤0.30 dB/km
Point discontinuity ≤ 0.05 dB
Cable cut-off wavelength ≤ 1260 nm
Zero-dispersion wavelength 1300 ~ 1324 nm
Zero-dispersion slope ≤0.093 ps/(nm².km)
Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm

≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km)
PMD ≤0.2 ps/km½
Mode field diameter @ 1310 nm 9.2±0.4 um
Core / Clad concentricity error ≤0.5 um
Cladding diameter 125.0 ± 0.7 um
Cladding non-circularity ≤1.0%
Primary coating diameter 245 ± 10 um
Proof test level 100 kpsi (=0.69 Gpa), 1%
Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm
≤ 0.1 dB/km

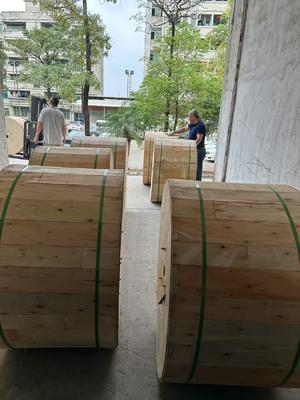

Packing & shipping:

Packing:Plywood 3/4/5 drum

Shipping:by sea/road

Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY 2

Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY 3

Company profile:

1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world



Exhibition:

Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY 4



FAQ:



1.Are you the real manufacturer?
Yes. We are the real manufacturer with 12years history.

2.What is your fiber brand ?
YOFC/Fiberhome



3.Do you provide samples?is it free or charged? Yes,samples are for free,just pay for freight

4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

5.What is your cable life expectancy?
25-30 years for outdoor fiber optic cable

6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE

7.What is your delivery time?
Usually 5-7 working days,it depends on order quantity

8.What is your payment way?
T/T, L/C, Western Union,Paypal

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
