GYTA Armored Fiber Optic Cable 2-144 Core Outdoor Loose Tube for Aerial & Duct

ন্যূনতম চাহিদার পরিমাণ : 1 কিলোমিটার প্যাকেজিং বিবরণ : কাঠের ড্রাম
ডেলিভারি সময় : 2-5 দিন পরিশোধের শর্ত : এল/সি, ডি/এ, ডি/পি, টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম
যোগানের ক্ষমতা : প্রতি মাসে 8000 কিলোমিটার
উৎপত্তি স্থল: গুয়াংডং , চীন পরিচিতিমুলক নাম: JQ/OEM/Customize
সাক্ষ্যদান: CE/ISO9001/RoHS/FCC মডেল নম্বার: জিওয়াইটিএ 12 কোর/24 কোর/48 কোর

বিস্তারিত তথ্য

প্রকার: আউটডোর ফাইবার অপটিক কেবল উৎপত্তি স্থল: গুয়াংডং, চীন
ফাইবার টাইপ: G652d একক মোড বা আপনার অনুরোধ হিসাবে ফাইবার গণনা: 2-144 কোর
দৈর্ঘ্য: কাস্টমাইজড রঙ: কাস্টমাইজড
টিউব: মাল্টি-লুজ টিউব কেন্দ্রীয় শক্তি সদস্য: ইস্পাত তারের
সাঁজোয়া: ইস্পাত টেপ সাঁজোয়া বাইরের শিথ: পিই/ এইচডিপিই/ এমডিপিই বা আপনার অনুরোধ হিসাবে
প্যাকেজ: কাঠের ড্রাম আবেদন: এরিয়াল, ওভারহেড/ সরাসরি দাফন
OEM: উপলব্ধ অপারেটিং তাপমাত্রা: -40°C~+70°C
জ্যাকেট রঙ: কালো উপাদান: পিই/এইচডিপিই/এমডিপিই
স্ট্যান্ডার্ড দৈর্ঘ্য: 2,000 মি/4000 মি বর্ম: ইস্পাত টেপ+আল টেপ
ফাইবার উপাদান: YOFC/ কর্নিং/ ফাইবারহোম ফাইবার সংখ্যা: 24f
ফিলার: ভরাট যৌগ বাইরের শিট উপাদান: এমডিপিই / এইচডিপিই / পিই
শক্তি সদস্য: ইস্পাত তারের সার্টিফিকেট: সিসিসি আইএসও 9001, সিই, টিএলসি
জ্যাকেট: পিই, এমডিপিই, এলএসজেডএইচ, পিভিসি ইউভি প্রতিরোধের: হ্যাঁ
টেনসিল শক্তি: 1000N/1500N/2000N/2500N/3000N
বিশেষভাবে তুলে ধরা:

GYTA armored fiber optic cable

,

outdoor loose tube fiber cable

,

144 core aerial duct cable

পণ্যের বর্ণনা

GYTA Armored Outdoor Fiber Optic Cable – Aluminum Tape Moisture Protection

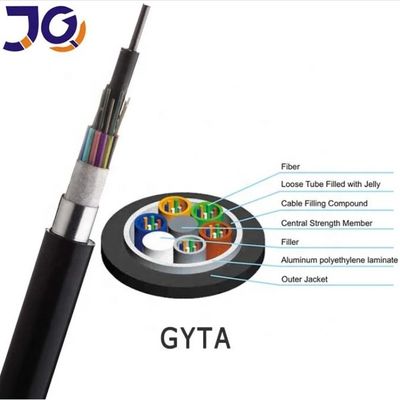

The GYTA cable is built with stranded loose tubes around a central strength member, creating a stable and compact core. The core is wrapped with aluminum-polyethylene laminate, tightly bonded to a PE inner sheath to block both longitudinal and radial moisture. For extra protection, corrugated steel tape laminated with polyethylene is applied, and a durable MDPE outer jacket is extruded under strict conditions.

GYTA is ideal for aerial and duct installations in long-distance telecom networks. The “A” represents the aluminum tape layer, which delivers excellent corrosion and moisture resistance, making it a better choice than steel-tape designs for duct environments.

Key Features & Benefits

  • High Strength & Durability – Excellent tensile and crush resistance for demanding environments.

  • Reinforced Central Member – Phosphatized steel wire core, optionally PE-coated for extra flexibility and corrosion protection.

  • Superior Water Blocking – Loose tubes and cable core are fully filled with water-blocking gel to prevent longitudinal water ingress.

  • Effective Moisture Barrier – Aluminum tape laminated with PE ensures strong radial moisture protection and rust prevention.

  • Long Service Life – Reliable optical performance for backbone and metro networks.

  • Wide Applications – Perfect for telecom backbone, CATV, and high-speed data transmission systems.

GYTA Armored Fiber Optic Cable 2-144 Core Outdoor Loose Tube for Aerial & Duct 0

Specification:

item value
Model Number GYTA
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Number of Conductors ≥ 10
Fiber count 2-288 Cores
Fiber Type G652D Single mode or as your request
Loose tube material PBT
Central strength member steel wire
Armoured Al tape
Outer Sheath PE
Cable Structure Multi-Loose Tube Aluminum/Steel Tape armor
Color Black or as your need
Package Fumigation free wooden drum
Installation aerial, in duct
Certification CE/ROHS/ISO9001 /ANATEL
OEM Available


Structure and Technical Specifications:

Fiber Nominal Nominal Max Fiber Max No. Allowable Tensile Allowable Crush
Count Diameter Weight Per Tube of(Tubes+ Load(N) Resistance(N/100mm)
  (mm) (kg/km)   fillers) Short Term Long Term Short Term Long Term
2~36 10.3 109 6 6 1500 600 1000 300
38~72 11.5 145 12 6 1500 600 1000 300
74~96 13.5 175 12 8 1500 600 1000 300
98~120 14.8 209 12 10 1700 600 1000 300
122~144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218~288 19 325 12 24(2 layers) 2500 600 1000 300

Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.

GYTA Armored Fiber Optic Cable 2-144 Core Outdoor Loose Tube for Aerial & Duct 1

WHY CHOOSE US:

GYTA Armored Fiber Optic Cable 2-144 Core Outdoor Loose Tube for Aerial & Duct 2



Certification:

GYTA Armored Fiber Optic Cable 2-144 Core Outdoor Loose Tube for Aerial & Duct 3

FAQ



1. Who Are We?
We are a professional fiber optic cable manufacturer in Guangdong, China, established in 2017. Our products are exported worldwide, with major markets in Africa, South America, Western Europe, the Middle East, Southeast Asia, and South Asia. We have a team of 11–50 skilled employees.

2. How Do We Guarantee Quality?

  • Pre-production samples are offered before mass production.

  • 100% final inspection is carried out before shipment.

3. What Products Do We Offer?
Fiber Optic Cables, FTTH Drop Cables, Communication Cables, and Indoor/Outdoor Fiber Cables.

4. What Services Are Available?

  • Delivery Terms: FOB, EXW

  • Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash

  • Currencies Accepted: USD, CNY

  • Languages: English, Chinese

5. What Is the Minimum Order Quantity (MOQ)?
The MOQ is 1 km.

6. Can I Get a Sample?
Yes, we offer free samples; you only need to pay the shipping fee.

7. Do You Support OEM/ODM?
Yes, we provide customized solutions with full OEM and ODM support.

8. What Is the Lead Time?
Usually 3–7 days after order confirmation, depending on quantity and specifications.
