GYFTY Fiber Optic Cable Self Supporting 12 48 Core Direct Buried Duct Underground Outdoor Cable

ন্যূনতম চাহিদার পরিমাণ : 10 কিমি প্যাকেজিং বিবরণ : কাঠের ড্রাম
ডেলিভারি সময় : 8 দিন পরিশোধের শর্ত : এল/সি, টি/টি, ওয়েস্টার্ন ইউনিয়ন
যোগানের ক্ষমতা : প্রতিদিন 300KM
উৎপত্তি স্থল: চীন পরিচিতিমুলক নাম: JQ/ Customized
সাক্ষ্যদান: ISO9001, FCC, ROHS/CCC/FCC মডেল নম্বার: GYFTY-24F

বিস্তারিত তথ্য

ফাইবার ব্র্যান্ড: YOFC/ফাইবারহোম/কর্নিং রঙ: কালো বা কমলা বা কাস্টমাইজড
জ্যাকেট মেটারিয়াল: PE, HDPE/LSZH শক্তি সদস্য: FRP (প্রয়োজন হলে PE সহ)
ফাইবার গণনা: 4-288 কোর ইনস্টলেশন: ওভারহেড এবং নালী
ড্রাম দৈর্ঘ্য: 5 কিমি বা কাস্টমাইজড পণ্যের নাম: GYFTY আউটডোর ফাইবার তার
বিশেষভাবে তুলে ধরা:

12 core duct fiber optic cable

,

48 core underground fiber optic cable

,

self supporting outdoor fiber cable

পণ্যের বর্ণনা

High Quality Outdoor Single Mode Self-Supporting Fiber Optic Cable – 24 Core G652D GYFTY

Key Features

  • Strong mechanical performance and excellent temperature resistance

  • Water-blocking, high-strength loose tube to protect fibers

  • Optical fibers filled with special gel for added protection

  • PE outer sheath with UV resistance and anti-compression properties

  • Lightweight, small diameter, easy for installation and overhead/duct/direct burial use

  • Non-metallic design, safe for lightning-prone or high-voltage areas


Available Fiber Types

  • Single Mode: OS2 9/125 G652D / G657A1 / G657A2

  • Multimode: OM1 62.5/125, OM2 50/125, OM3 10G, OM4 10G (other types available on request)


Applications

  • Power transmission lines and utility poles

  • Lightning-intensive areas

  • Outdoor backbone network / FTTH projects

  • Duct, aerial, or direct burial installations




Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % 0.7
Core-Cladding Concentricity Error um 0.5
Coating Diameter um 245±5
Coating Non-Circularity % 6.0
Cladding-Coating Concentricity Error um 12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical Parameters

Fiber
Count
Diameter
(MI)
Weight
(KG/KMI)
Min.Bend Radius Mlin.Tension
(N)
Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 8.8 88

10
Times
Diameter

















20
Times
Diameter

















1500 800 1000 500
32-36 9.0 95 1500 800 1000 500
38-60 9.2 98 1500 800 1000 500
62-72 9.5 105 1500 800 1000 500
74-96 10.5 118 1500 1000 1000 500
98-120 11.8 145 2000 1500 1000 500
122-144 14.2 165 2000 1500 1000 500
146-216 16.3 225 2000 1500 1000 500
218-240 18.5 305 2000 1500 1000 500
242-288 22.7 395 2500 2000 1000 500



Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788





Detail product pictures

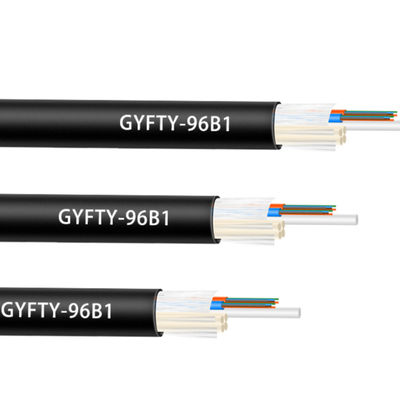

GYFTY Fiber Optic Cable Self Supporting 12 48 Core Direct Buried Duct Underground Outdoor Cable 0



GYFTY Fiber Optic Cable Self Supporting 12 48 Core Direct Buried Duct Underground Outdoor Cable 1



                                   Picture shows about the GYFTY-48 C









FAQ

Q1: Are you a factory?
Yes. We are a direct manufacturer of fiber optic cables, MPO breakout cables, and patch cords, with exports to Europe, South America, and other regions.



Q2: What are your main products?
Outdoor/indoor fiber optic cables, FTTH drop cables, ADSS cables, armored indoor patch cords, and SC/LC/FC/ST/MTP/MPO optical patch cords.



Q3: What is the warranty for your products?
We provide a 20-year warranty for our fiber optic cables.



Q4: Do you have certifications for raw materials?
Yes. All raw materials are sourced from ISO9001 and ROHS-certified suppliers.
