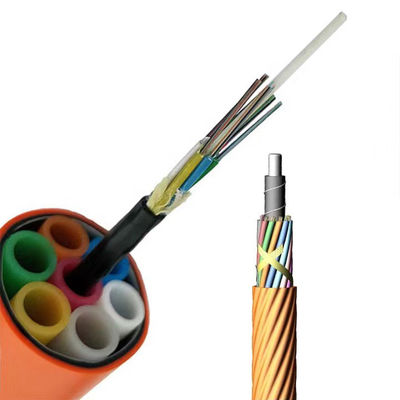

24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket

ন্যূনতম চাহিদার পরিমাণ : 1 কিমি প্যাকেজিং বিবরণ : কাঠের ড্রাম
ডেলিভারি সময় : 5-8 কর্মদিবস পরিশোধের শর্ত : এল/সি, টি/টি, ওয়েস্টার্ন ইউনিয়ন
যোগানের ক্ষমতা : প্রতিদিন 30 কিমি
উৎপত্তি স্থল: গুয়াংজু, চীন পরিচিতিমুলক নাম: JQ/OEM/Customize
সাক্ষ্যদান: ISO9001 ROHS CE-EMC FCC SDOC মডেল নম্বার: GCYFY/GCYFTY

বিস্তারিত তথ্য

ফাইবার গণনা: 4-144 কোর ফাইবার টাইপ: একক মোড/মাল্টি মোড
জ্যাকেট: পিই/পিভিসি/এলএসজেডএইচ/এইচডিপিই/এমডিপিই রঙ: কালো বা কমলা বা কাস্টমাইজড
পণ্যের নাম: এয়ার-ব্লোন মাইক্রো ক্যাবল দৈর্ঘ্য: 2 কিমি বা কাস্টমাইজড দৈর্ঘ্য
ইনস্টলেশন: বায়বীয় বা ডাক্ট পাইপ পাড়া কন্ডাক্টরের সংখ্যা: ≥ 10
বিশেষভাবে তুলে ধরা:

24 core air blown fiber cable

,

96 core LSZH optical fiber cable

,

outdoor micro fiber optic cable

পণ্যের বর্ণনা

24 48 96 Core GCYFY Air Blown Fiber Micro Cable

Product Description

Model: GCYFY
Structure: Loose-tube, non-metallic reinforced, non-armored micro cable designed for air-blown or pulled installation in pre-laid microducts.

Features

  • Non-metallic strength member; lightweight and flexible

  • Loose-tube design with excellent mechanical and temperature performance

  • Optimized for air-blown installation to maximize duct utilization

  • Easy network expansion and rapid deployment

Applications

  • FTTH feeder and drop segments

  • Air-blown installation from branch points to access points

  • Suitable for backbone, metro, and access networks



Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%





24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket 0





Fiber & Tube Color


24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket 1

24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket 2

Environmental Characteristics

• Transport/storage temperature: -40℃ to +70℃



Cable Parameters



Cores



Cores/tube



FRP diameter (mm)



Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38

24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket 3



Delivery Length

• Standard length: 4,000m; other lengths are also available.

24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket 4
